Unsafe Tab

This tab allows the determination of Unsafe conditions, based on the criteria defined on the Limits tab.

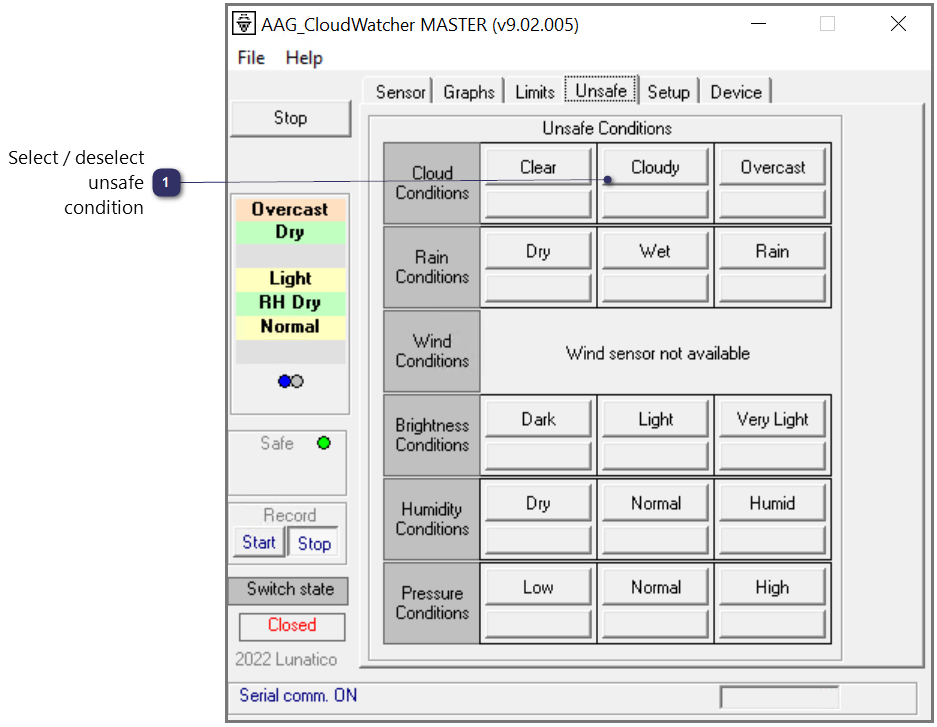

For each condition there are two buttons. Selecting the top button instructs the software to treat that condition as unsafe.

	Select / deselect unsafe condition
	A selected unsafe condition appears in red.

Note that when:

•Cloudy is selected Overcast is automatically selected.

•Wet is selected, Rain is automatically selected.

•Windy is selected, Very Windy is automatically selected.

•Light is selected, Very Light is automatically selected.

•Normal humidity is selected, Humid is automatically selected.

•Normal pressure is selected, High pressure is automatically selected.

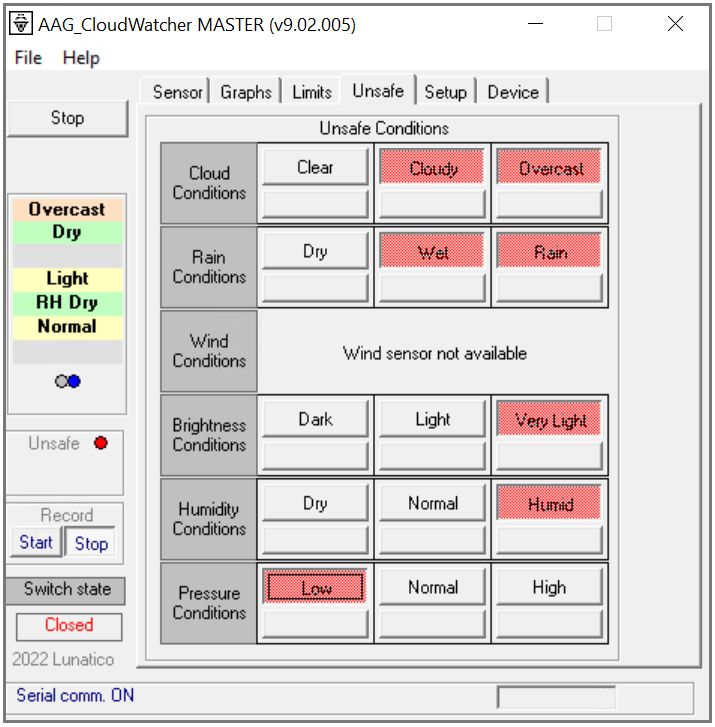

A typical selection might appear as below:

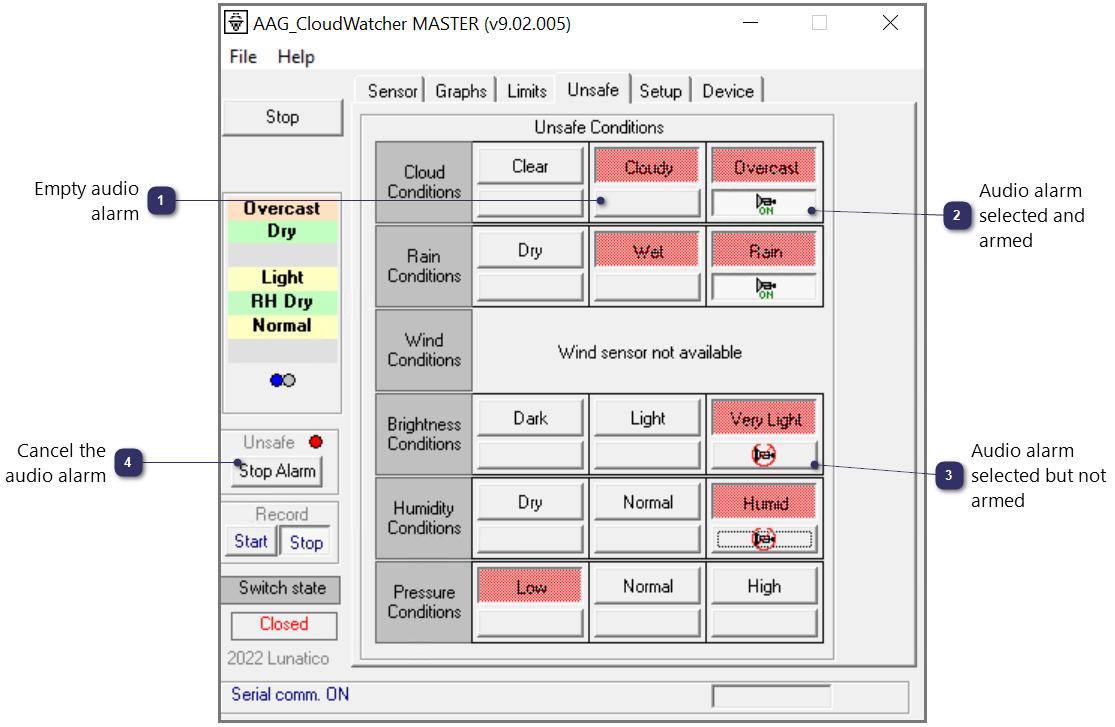

The lower buttons are used to select and audio alarms.

Empty audio alarm

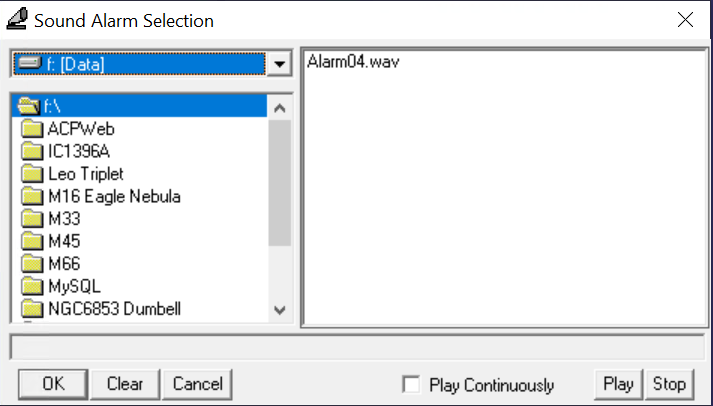

Right-click to open audio alarm selection window.

Select 'Play Continuously', if required.

Select OK to confirm choice or clear to remove an existing alarm.

Each button can be programmed with a separate sound.

Audio alarm selected and armed

Left-click to arm the alarm.

To arm the sound, the associated Unsafe button must be armed (red).

Audio alarm will play when condition becomes unsafe.

	Audio alarm selected but not armed
	The symbol only appears on buttons when a sound has been selected (see 1. above).

	Cancel the audio alarm
	Left-click to cancel the alarm.
